A simple brushless sensorless motor driver for AVR Atmega

Brushless electric motor (BLDC motors) are synchronous motors that are powered by a DC electric source via an integrated inverter/switching power supply, which produces an AC electric signal to drive the motor.



For an introduction to BLDC motors, please look at my sensored motor driver post, here: http://davidegironi.blogspot.it/2013/09/a-simple-brushless-sensored-motor.html


For this project, I've implemented a simple brushless sensoreless motor driver for AVR Atmega. The code i propose it's not perfect, and can be improved, but for the needs i had it works.

The motor can be controlled in speed and direction (clockwise and anti-clockwise).

This project use open loop startup and bemf zero crossing detection method with ADC.
Speed change can be done only when motor is not running, ADC is used during spinning phase in zc detection so it can not be used during the motor spinning, but digital speed changing can be implemented.
ZC threshold current should be defined by user depending on the motor type.

User has to setup the port used to read the the bemf current. Also the timer interrupt and prescaler should be setup for different running frequency.
The running step for the motor are defined as default, anyway user can change it to fit any motor.


A sample main routine is provided to help you understand how the library works.

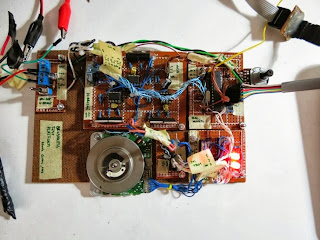

The same test board of sensored library post is used, reported here the schamatics, for further info look at the sensored library post.

Setup parameters are contained in bldcsensorless.h

This library was developed on Eclipse, built with avr-gcc on Atmega8 @ 8MHz.

Code
Notes
  • read risk disclaimer
  • excuse my bad english

53 comments:

  1. I was waiting for it. Great. But I don't understand smt:

    [quote]:
    "User has to setup the port used to read the hall sensor, <...>"

    Isn't this sensorless?

    ReplyDelete
    Replies
    1. thank you for you feedback.
      yes, it is for sensorless motors, i made i mistake writing description here, now i've corrected this post :)

      Delete
  2. Hallo! Nice job, i like your work on those bldc's with atmega8. In your two projects, witch one had the most torque on the motor: the sensored or the sensorless one? I'm interested in making a diy rc hovercraft from scraps and junked pc components for a charity purpose. Thank you!

    ReplyDelete
    Replies
    1. i've not measured torque force, for shure the sensored has more force on startup stage, cause input are driven by hall sensor.

      Delete
  3. Hi again Davide, i'm sorry for putting noob questions but i'm a beginner in programming avr (i'm still learning the arduino), i tried to make a hex file from your Eclipse project but i couldn't find a way to do so. I also tried in Eclipse and Avr Studio but with no result. Can you please help me with that? What do i have to do to turn your project into a hex file for burning it to the atmega8? P.S.- the programmer is not an issue, i can build it in no time. Thnx

    ReplyDelete
    Replies
    1. No problem, just google for "Eclipse AVR tutorial" you will find some website that teach you how to build and hex file for ATmega with Eclipse. I suggest you, at first, to try building and loading a simple project, like a blinking led, then try with this one.

      Delete
  4. Thanks for your effort.
    I saw the schematic and the source code for sensorless.
    When I check the source code and the schematic, I found some difference.
    For example
    To change the direction, you use the PC5 port. But the PC5 connect to on the PD0 schematic. So I'm confusing.
    I want to know what the truth is. And I want to get the schematic of the latest version. Can you send it to me?
    Have a nice day!
    Regards HYYoo

    ReplyDelete
    Replies
    1. Thank you for feedback, I've never noticed i've posted the wrong schematics version.
      The one you can find now in this post has correct wiring.

      Delete
    2. Thank you Davide.
      Your source code is simple and excellent. So I can understand the concept for the BLDC. Also I can know how to implement it.
      As your code, for the change a speed and a direction, first stop a motor then start it. Is right? I think that the speed is changed while spin. So I just add some part as follow. is it possible?
      if(direction != directionold) { //direction changed
      ......
      }else{
      potspeed = adc_read(POTSPEED_CHANNEL); //read filtered pot speed
      if(potspeed != potspeedold) {
      potspeedold = potspeed;
      uint16_t potspeedn = (long)(potspeed - 0) * (long)(100 - 0) / (long)(1024 - 0) + 0;
      bldcsensorless_setspeed(potspeedn);
      }
      }

      Thank you!

      Regards HYYoo.

      Delete
    3. thank you.
      The sensorless version of my code check the backemf by ADC continously (BLDCSENSORLESS_ADCREADSEL), ADC is always "busy". that's the reason why i prefer to read speed changes while not spinning.
      You could free the RX pin an control the speed by uart.
      You also could use other tecnique to read the backemf. Some time ago I was implementing a version that use cumulative current check, and make less use of ADC, but I've never continue on that project. I suggest you to give a try to the Takao code from rcgroups.com, or the wii-esc project code.

      Delete
  5. hi
    i m implementing ur code but i need some clarification about these points
    BLDCSENSORLESS_ZCERRORS : what does it refer to
    how in code i define zero cross threshold
    bldcsensorless_setspeed(100) :what is the unit for speed
    thanks for ur help


    ReplyDelete
    Replies
    1. Hello,
      BLDCSENSORLESS_ZCERRORS it is used to check how many zc incorrect position (errors), occours, if too many occours, then a startup loop is launched.
      Unit for speed, is 0 to 100.

      Delete
  6. thanks for ur reply
    i m trying it now with cd rom motor of nidek
    the start up commutations start but the repeat without entering running phase
    what is the problem
    thanks again for feed back

    ReplyDelete
    Replies
    1. Check your hardware with another firmware, like wii-esc, so you will be shure that hardware is ok, and then you can debug the firmware.

      Delete
  7. hi again
    how do i define zc threshold ? i mean if it is estimated tobe 4 volts >>how do i write 4 volts in ur code"i see value of 150 and i dont know what it refers to "volts - millivolts....???
    thanks

    ReplyDelete
    Replies
    1. My threshold is a raw value, not a voltage converted value.

      Delete
  8. //check zc depending on actual polarity
    if ((!bldcsensorless_zcpolarity && currentbemf>BLDCSENSORLESS_ZCTHRESHOLD) || (bldcsensorless_zcpolarity && currentbemf>>>>?????
    this part is vague to me

    ReplyDelete
    Replies
    1. That's where the zero crossings (zc) is checked.
      Keep in mind that i use adc to check this, a better approach should use the analog comparator. As soon as i will have time to implement that, i will release an analog comparator version of this project.

      Delete
  9. hi
    which wii-esc is suitable for ur hardware scheme?

    ReplyDelete
    Replies
    1. Check the wii-esc circuit, i suppose you just have to change ports setup.

      Delete
  10. hi
    here what i did till now
    1 i built ur hardware circuit
    2 i flashed the mcu with ur code"didnt change it coz i dont know what variables to change regarding zcthreshold and the port used to read bemf current "

    ReplyDelete
    Replies
    1. Again, check the harware whit another firmware, then you can debug the software.
      Mine is a farily basic driver, It does not implement duty cycle, and do not use analog comparator. So if you need performance, i suggest you to switch to another one. Takao Shimizu on rcgroups.com is building a simple but very good driver, check the "BLDC controller" discussion on the rcgroups.com. To read more about bldcmotors, rcgroups.com is the place you have to be.
      Also a good starting point will be the AVR444 Atmel Application Note.

      Delete
  11. This comment has been removed by the author.

    ReplyDelete
    Replies
    1. hi
      I have hdd motor ı want to drive without any feedback when delay about 30ms it turn but when delay is too low it produces "squealing sound" but does not turn can you suggest me any solution
      thanks for your help

      Delete
    2. It could be because you are trying to move it too fast. If you are using this driver keep in mind that this is not a PWM driver. Also it use ADC reading to read back EMF, there are faster approach that use ADC comparator, and faster ADC conversion means faster spin.

      Delete
  12. To adjust the speed, I understand you can bypass the switches (in order to avoid the losses), and instead do it by adjusting the VBus going to the motor. The switches would only be used for commutation.


    But what if you want to control speed via the PWM duty cycle.. does it matter which switch you pulse (i.e. high side, low side, both (complimentary))?

    Also, there's unipolar vs bipolar (1-4 quadrants) that I'm not sure how what this means in practical terms. From what I've read, when doing unipolar, the rotation direction is determined by the commutation sequence, but in bipolar, the direction is based on if the duty cycle is less than or greater than 50%?! But how (or why) does this actually work?

    Also, can you recommend where to buy a driver board? I'm not too handy with a soldering iron, but would love to hook up a bldc motor (no sensors) to my atmega1280 kit. I'd like to try 6-step trapezoidal commutation and maybe someday sinusoidal/foc with a beefier processor!

    ReplyDelete
    Replies
    1. If you mean controlling the speed control of the driver by PWM, you need to implement a PWM reader using the interrupt input PIN as example. There are a few post on avrfreaks to discuss about this.
      For the "how to drive", and "how it works", The unipolar / bipolar commutation sequence it is a PWM techinique of controlling the motor. This (my driver), is not PWM.
      The cheapest compete boards that comes to me, are ESC 30A drivers commonly used for RC. You can buy any SimonK compatible ESC board, then open it, make just some solder to expose the ISP programming wiring, and use the internal ATmega8 micro. Or you can buy somthing like the hip4086 and use just some mosfet to build an external driver to use with your ATmega1280.
      Hope this helps.

      Delete
    2. Awesome, thanks! I was thinking you were using pwm because the bldcsensorless.c source had a comment about fast pwm mode... but looks like that's just to setup the timer. So are you controlling the speed by adjusting the time (ICR1) between when a zero crossing occurs and when the next commutation is applied?

      Delete
    3. Yep. The speed control it's "ICR1 = bldcsensorless_speed;". I'm working on a PWM driver, but In this period I'm full of work and I do not have time to finish that driver.

      Delete
  13. Hi Davide . I made it but what is the UART (PD1) ? where i should connect it to ?
    What is the use of it ?
    Thank you

    ReplyDelete
    Replies
    1. Hello,
      the uart PD1 is just for debug purpose on serial port. If you need to debug something throght serial connection.

      Delete
  14. so why it does'n work ? :-(
    I made both in real and also in Proteus .
    In real it rotates the motor for a while with different speeds and again and again.
    and it has nothing to do with the speed variable resistor and direction set .

    ReplyDelete
    Replies
    1. Check your timer setup. Check the zc bemf threshold. Scope around to see what's not working. It will probabily do the startup cycle, then maybe the zc threshold is not read or it is not propery setted. It changes by motors and even by power driver. You have to debug it.

      Delete
  15. thank you for this.
    But I can't understand why PD6 don't have LPF?
    I had known neutral point need LPF. Its input is HF signal.
    can you tell that?

    ReplyDelete
    Replies
    1. Hello. The schematics you see above it's a standard implementation. The code in this library does not use the comparator on PD6. A better approach is to use that comparator. Indeed I've another driver in production which use that comparator. I will share that project soon.

      Delete
  16. Hello, I have one more question.
    It can't start with itself. If I forced to start, it has run.
    I think starting power is lack, but I can't modify.
    How can I fix the source to do?

    //run commutations
    for(;;) {
    bldcsensorless_runstep(bldcsensorless_commutationstep);
    if(bldcsensorless_commutationstep == 0) {
    if (i < 2)
    i += 1;
    if ((i == 2)&&(j<BLDCSENSORLESS_STARTUPCOMMUTATIONS)) {
    j += 1;i=0;
    }
    if ((i==2)&&(j==BLDCSENSORLESS_STARTUPCOMMUTATIONS)){
    break;
    }
    }
    //do startup delays
    uint16_t d = 0;
    for(d=0; d<startupdelays[j]; d++) {
    _delay_us(5);
    }

    I modified i and delay_us(5), but that wasn't change.

    Linked address is video of my bldc driver.
    https://youtu.be/F-iwdNtXJYg

    I'm sorry for this. T.T

    ReplyDelete
    Replies
    1. I modified zc threshold and zc error but it can't run too.
      How can I start a motor...

      Delete
    2. Hello, at first i would try with another motor, one that's needs less current then the the one you are using, maybe a floppy or cd one. Just to see if is all working.
      Then, one thing you could change is BLDCSENSORLESS_STARTUPDELAYS and BLDCSENSORLESS_STARTUPCOMMUTATIONS
      But remember, this a simple brushless driver, i think you should go for a PWM one, which works slighty better on high speed.

      Delete
  17. can u give me the code for spwm technique for low speed control of sensorless bldc

    ReplyDelete
    Replies
    1. Hello, you can download the code for this project by the link on the description. However, this code does not implement SPWM.

      Delete
  18. could you tell me the code.? thanks

    ReplyDelete
    Replies
    1. Hello, you can find it in the blog post link.

      Delete
    2. is this all code able to generate with CVAVR software.?

      Delete
    3. This code is tested and copiled over a avrgcc compier. I've never test it on CodeVision AVR

      Delete
    4. it's ok, i'll try to generate with CVAVR because I usually use it.
      Davide, could you send me hex file of sensored and sensorless to my email ruslirizani@gmail.com, please.
      thank you Davide

      Delete
  19. Ciao Davide, spero che non dia fastidio che scrivo in italiano ma lo é per me molto piú semplice. Ho un BLDC motore coi parametri tecnici 100V/150Hz 280W 2250r/min ed ho provavo far girare questo motore per mezzo dello tuo driver. Sono riuscito a farlo girare coi 15V sugli MOSFET senza qualsiasi modifiche dello programma, anche se il motore si è avviato molto difficilmente e qualche volta ci voleva pure 30 secondi finche non si è avviato e quando si girava, lo faceva molto lentamente e percio mi sono deciso di provarlo coi 50V sugli MOSFET ma dopo aver provavo questo, mi scoppiarono qualche componenti dello driver e non so perché. Potresti darmi qualche consiglio come dovrei modificare lo programma (BLDCSENSORLESS_STARTUPDELAYS , BLDCSENSORLESS_STARTUPCOMMUTATIONS,  zc threshold) o componenti dello schematics? In effetti, é secondo te possibile gestire il mio motore per mezzo dello tuo driver coi 50 o 100V sugli MOSFET?

    Grazie

    Scusa per sbagli in italiano

    ReplyDelete
    Replies
    1. Ciao, questo driver non implementa alcuno schema di PWM. Questo significa che durante un ciclo di commutazione i mosfet sono sempre ON o OFF (al contrario per esempio di uno schema come H ON L PWM per bldc). In realtà anche quella usata da questo driver è una modalità di PWM, ma non funziona bene soprattutto a bassi giri. Il mio consiglio è dare una occhiata a driver più performanti come SimonK o anche wii-esc. Sto terminando un driver che implementa PWM però non riesco mai a trovare il tempo di finirlo, quindi per ora è ancora in prova. Puoi tentare modificando STARTUPDELAYS, STARTUPCOMMUTATIONS, STARTUPDELAYMULT (per problemi nella fase di inizio corsa), TIMER1_ICR1 TIMER1_PRESCALER (timer principale del ciclo di gestione) SPEEDMIN ,SPEEDMAX (indici per velocità min e max del motore) ZCERRORS soglia di ZC (questo è un parametro che può variare da motore a motore).
      Tieni sempre d'occhio il consumo di corrente, ed il calore dissipato dai mosfet. Spero di esserti stato di aiuto. Un saluto. Nota: il tuo italiano molto buono non ti preoccupare.

      Delete
  20. Molte grazie per i tuoi consigli e anche per complimento :-)

    ReplyDelete
